DJI (OFDM), FPV (FM), and Wi-Fi (802.11) drones.
Detection

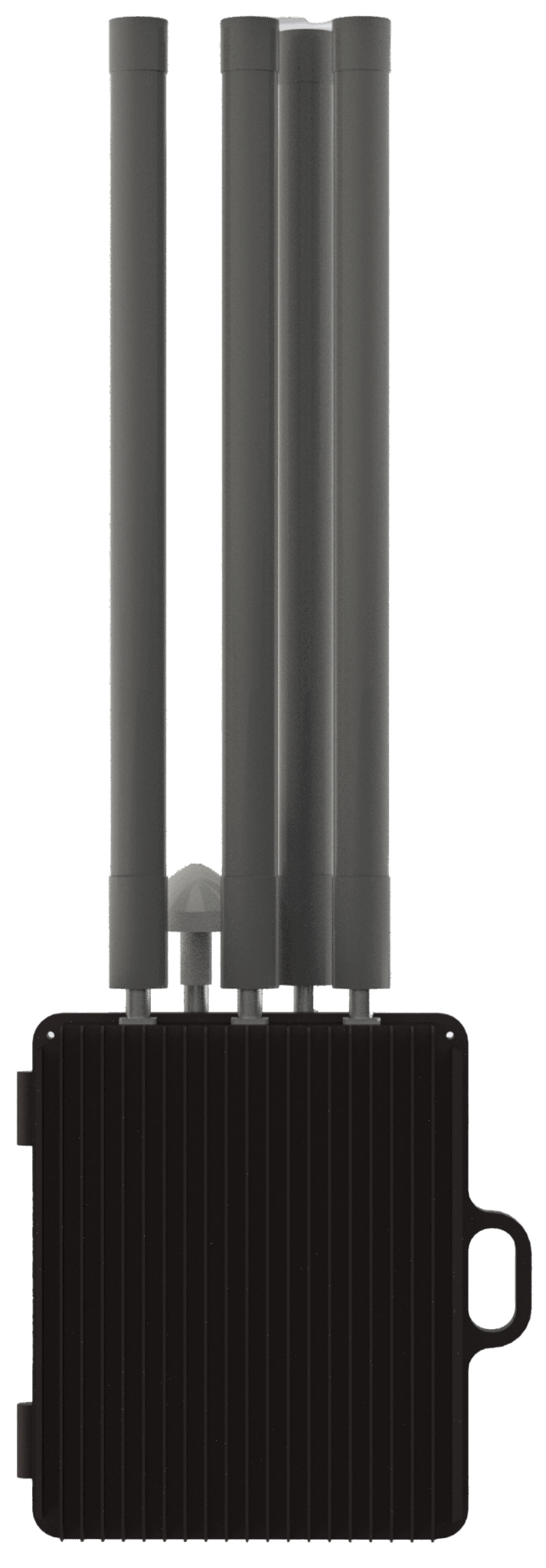

DR-H2
| Detection Range | ≥1 km |
| Frequency Range | 100 MHz–8 GHz |
| Protection Rating | IP54 |
Detection
DR-P1
| Positioning Accuracy | ≤5 m |
| Frequency Range | 70 MHz–6.2 GHz |
| Detection Range | Mainstream drones ≥10 km; FPV drones ≥2 km |
Detection
DR-P2
| Detection Range | Up to 10 km |
| Positioning Accuracy | ≤10 m |
| Simultaneous Target Detection | ≥20 targets |
Detection
DE-F1
| Positioning Time | ≤2 s |
| Tracking Accuracy | ≤0.5 mrad |
| Rotation Speed |
Horizontal 0.01°/s to 100°/s; Vertical: 0.01°/s to 80°/s |
Jammer
J-F2FB
| Jamming Frequency Range | 300 MHz–6 GHz |
| Jamming Range | 3 km |
| Maximum Output Power per Channel | 50 W / 47 dBm |
Jammer
J-F314
| Jamming Frequency Bands | Up to 14 bands |
| Jamming Range | 2 km |
| Jamming Direction | Directional / Omnidirectional / Switchable |
Jammer
J-P312
| Jamming Range | 2 km |
| Maximum Jamming Bands | 12 bands |
| Jamming Modes | Omnidirectional / Directional / Switchable |
Spoofing
S-F3
| Spoofing Range | 5–20 km |
| GPS Loss Response |
<1 s |
| Path Modification Time | ≤10 s |
Spoofing
S-F430
| Spoofing Range | 30 km |
| Transmit Beamwidth | 35° |
| Continuous Transmission | ≥24 h |
Integrated Systems
X1-F412
| Detection Range | 3–5 km |
| Jamming Range | 3–5 km |
| Total Output Power | 1200 W |
Integrated Systems
X1-F209
| Detection Range | 3–5 km |
| Jamming Range | 1.5–3 km |
| Jamming Bands | 9 bands |
Integrated Systems
X1-F309
| Detection Range | 10 km |
| Jamming Range | 3 km |
| Jamming Bands | 9 bands |
Integrated Systems
X3-F2FB
| Jamming Range | 3 km |
| Spoofing Range | 3 km |
| GNSS Spoofing Frequency Points | Up to 12 points |
Integrated Systems
X1-F510
| Detection Range | 3–5 km |
| Jamming Range | 1–3 km |
| Jamming Bands | 10 bands |
Integrated Systems
X1-H108
| Detection Range | 500–3000 m |
| Jamming Range | 1500–2000 m |
| Jamming Bands | 8 bands |
Integrated Systems
X2-P1
| Detection Range | 2 km |
| Spoofing Range | 1 km |
| Suppression Response Time | <3 s |
Modules
M-S1
| Spoofing Range | Up to 2 km |
| GNSS Frequency Points | 4 points |
| Power Consumption | ≤10 W |
Modules
M-S4
| Spoofing Range | Up to 1 km |
| GNSS Frequency Points | 7 / 13 / 18 |
| Power Consumption | ≤15 W |
Modules
M-S6
| RF Channels | 8 channels |
| GNSS Frequency Points | 24 points |
| Timing Accuracy | ≤30 ns |
Modules
M-J3
| Jamming Frequency Range | 20 MHz–6 GHz |
| Jamming Channels | 6 |
| Combined Bandwidth | 1000 MHz |
Modules
M-X31
| RF Jamming Frequency Range | 20 MHz–6 GHz |
| Instantaneous Bandwidth | 800 MHz |
| GNSS Constellations | 6 |
Modules
SG-1
| Sync Accuracy | <50 ns |
| Holdover Accuracy | ≤500 ns |
| Holdover Duration | ≥1 h, up to ≥24 h |
