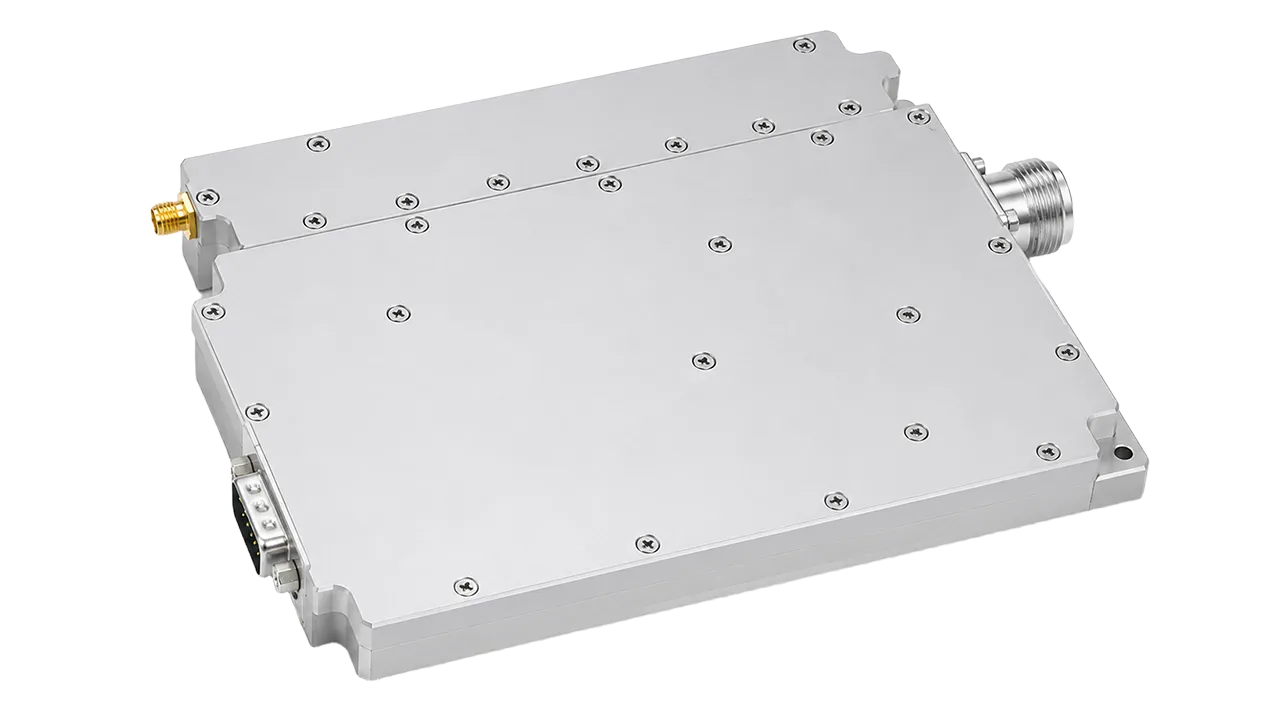

M-J2

Non-standard frequency band signal source
  • Detection
  • Jamming
  • Spoofing
  • Electro-optical
  • Radar
  • RF-Spectrum
This high-power RF module operates across the 7500-7800 MHz 7800-8000MHz 7800-8100MHz bands and is designed as a core power amplification unit for UAV countermeasure and wireless control disruption systems. Built on GaN technology, it delivers up to 50 W of stable output power, offering high gain, excellent linearity, and consistent efficiency across the operating band. The module features an integrated internal signal source, significantly reducing system complexity while enhancing deployment flexibility. Its compact metal enclosure, wide operating temperature range, and support for forced-air or conductive cooling ensure reliable performance in mobile, vehicle-mounted, and fixed-site countermeasure platforms. This product is intended for professional system integrators and controlled-access defense and security applications.

Jamming Frequency Range: 7500–7800 MHz / 7800–8000 MHz / 7800–8100 MHz

Bandwidth Adjustment: Supported

  • Category:
    Modules
    Share:
    Non-Standard Band RF Signal Source

    Designed for UAV countermeasure and wireless control disruption systems in high-frequency bands

    GaN-Based RF Amplification

    Uses GaN-on-SiC technology for stable high-power RF output

    Integrated Signal Source

    Built-in signal source reduces system complexity and improves integration flexibility

    High Output Power Module

    Delivers stable 50W RF output for professional countermeasure system integration

    Thermal-Optimized Module Design

    upports forced-air cooling or conductive heat-sink installation for reliable operation

    Customizable Configuration

    Supports customizable frequency range, RF connector, and enable control options

    Jamming Frequency Range

    7500–7800 MHz / 7800–8000 MHz / 7800–8100 MHz

    Maximum Output Power

    50 W / 47 ±1 dBm

    Maximum Gain

    47 ±1 dB

    Sweeping Speed

    120 kHz standard; customizable 50–300 kHz

    In-Band Ripple

    ≤3 dB peak

    Output VSWR

    ≤2.0

    Bandwidth Adjustment

    Supported

    Center Frequency Adjustment

    Supported

    Enable Control

    Customizable 3–28V

    Working Voltage

    24–28V, typical 28V

    Working Current

    5.5A

    Operating Temperature

    -20°C to +80°C

    Gain Stability

    ±2 dB across -20°C to +80°C

    Power Stability

    ±2 dB across -20°C to +80°C
