J-P312

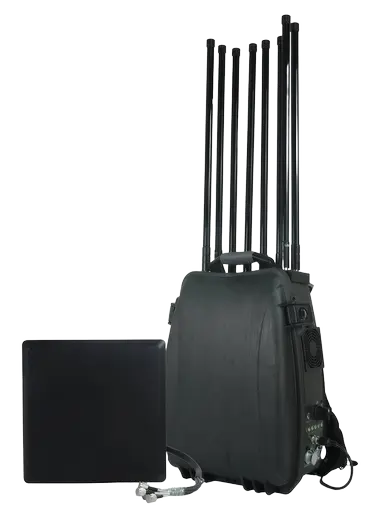

Backpack Drone Mitigation System

Detection
Jamming
Spoofing

Electro-optical
Radar
RF-Spectrum

This device is highly customizable and can be equipped with 6-12 jamming frequency bands. Omnidirectional and directional jamming can be switched. Detection and decoy capabilities can be added. It is portable by a single soldier, flexible in use, and has a wide range of applications.

Jamming Distance：2 km

Custom Frequency Range: 6000–8000 MHz optional

Category:

Jamming

Share:

Multi-Band Jamming

Supports configurable jamming across multiple frequency bands.

Omnidirectional Jamming

Provides wide-area suppression through backpack-mounted omnidirectional antennas.

Directional Jamming

Supports directional antenna use for targeted drone mitigation.

Customizable Configuration

Can be configured with detection and spoofing functions according to mission needs.

Flexible Deployment

Supports single-operator carry, vehicle-mounted use, and fixed-site deployment.

Custom Frequency Range

6000–8000 MHz optional

Jamming Distance

2 km

Jamming Frequency Range

400–500 MHz / 700–840 MHz / 840–960 MHz / 1170–1280 MHz / 1560–1610 MHz / 1800–1880 MHz / 2100–2170 MHz / 2300–2500 MHz / 3300–3600 MHz / 3600–3800 MHz / 5150–5300 MHz / 5700–5900 MHz

Supply Voltage

110–260V AC

Battery

Li-ion 25Ah

Power Consumption

1200W

Operating Temperature

-20°C to +65°C

Heat Dissipation

Fan cooling
