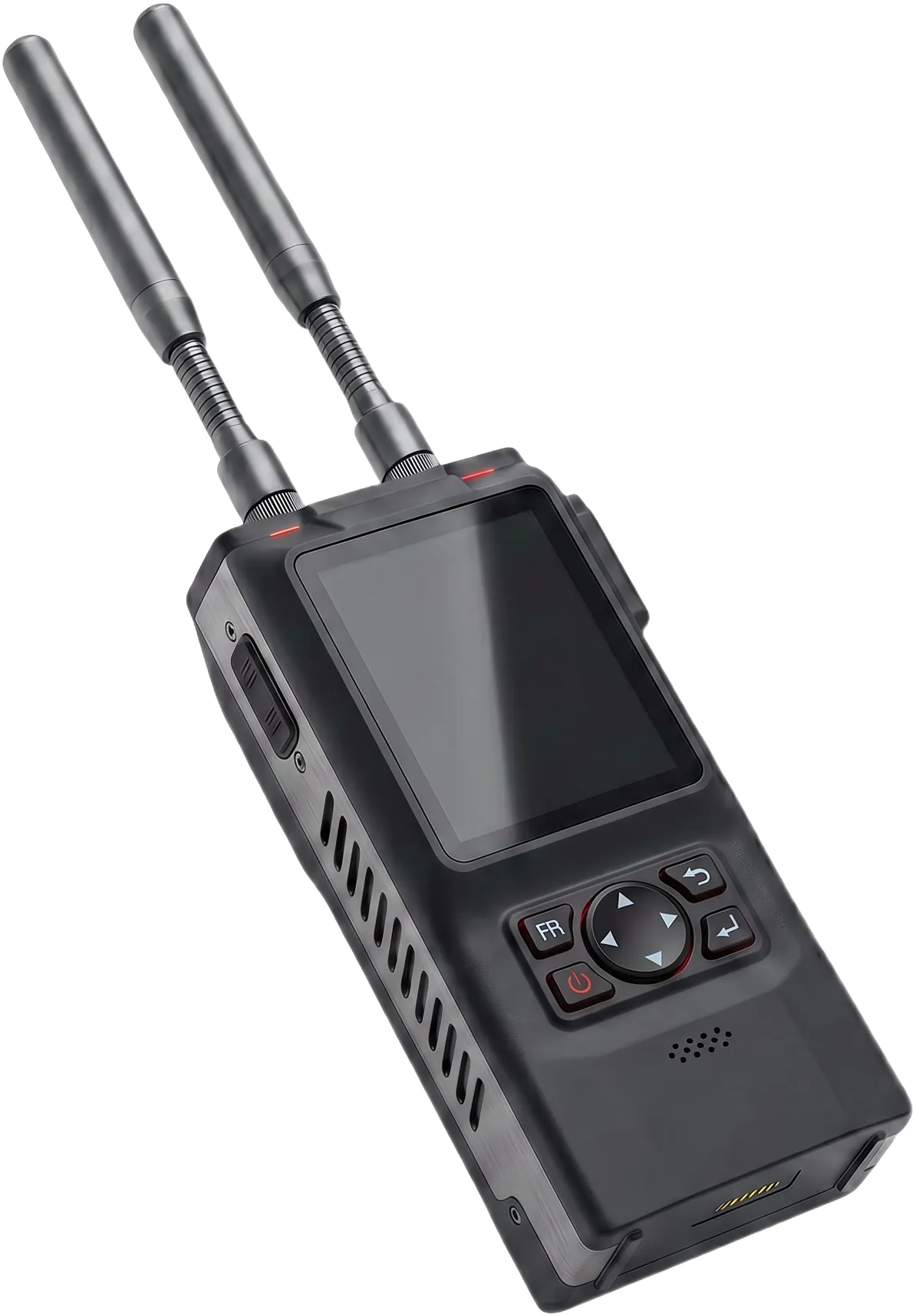

DR-H2

Portable FPV & Drone Detection Device
  • Detection
  • Jamming
  • Spoofing
  • Electro-optical
  • Radar
  • RF-Spectrum
The DR -H2 ultra-wideband portable UAV detection device adopts a superheterodyne architecture design. It can achieve performance testing on drones from mainstream brands such as DJI and Autel within the 100 MHz - 8 GHz frequency band. OFDM High-definition digital image transmission signals from technology , and various other technologies DIY Racing drone equipped with Detection of FM analog video transmission signals . The equipment adopts a dual-antenna hardware configuration and multi-channel parallel scanning technology, featuring fast detection response speed, high detection sensitivity, long effective detection distance, low false alarm rate , and system scalability. It boasts core technological advantages such as strong scalability and convenient and efficient operation.

Detection Range: ≥ 1 km

Frequency Detection Range: 100 MHz – 8 GHz

  • Category:
    D1etection
    Share:
    Wideband Drone Signal Detection

    Detects FPV drones and mainstream UAV image transmission signals with fast response and high sensitivity.

    FPV Video Capture

    Captures analog FPV video feeds in real time for direct viewing or external screen display.

    Directional Signal Locating

    Supports optional directional antenna use to help locate FPV drone signal sources faster.

    Detection-Countermeasure Linkage

    Connects with backpack countermeasure equipment to support an integrated detection and response workflow.

    Receive Frequency Band

    100 MHz–8000 MHz

    Video Capture Band

    100 MHz–8000 MHz analog video transmission

    Identified Signal Types

    OFDM HD image transmission signals; FPV racing drone FM analog video signals

    Detection Range

    ≥1 km

    Alarm Methods

    Vibration / sound / light

    Battery Capacity

    2900 mAh

    Battery Runtime

    Approx. 7 hours

    Charging Method

    Removable lithium battery, Type-C charging

    Fast Charging

    35W; full charge in about 1 hour

    Operating Temperature

    -20°C to +60°C

    Storage Temperature

    -40°C to +85°C

    Protection Rating

    IP54
