X1-F412

Full-band detection and jamming system
  • Detection
  • Jamming
  • Spoofing
  • Electro-optical
  • Radar
  • RF-Spectrum

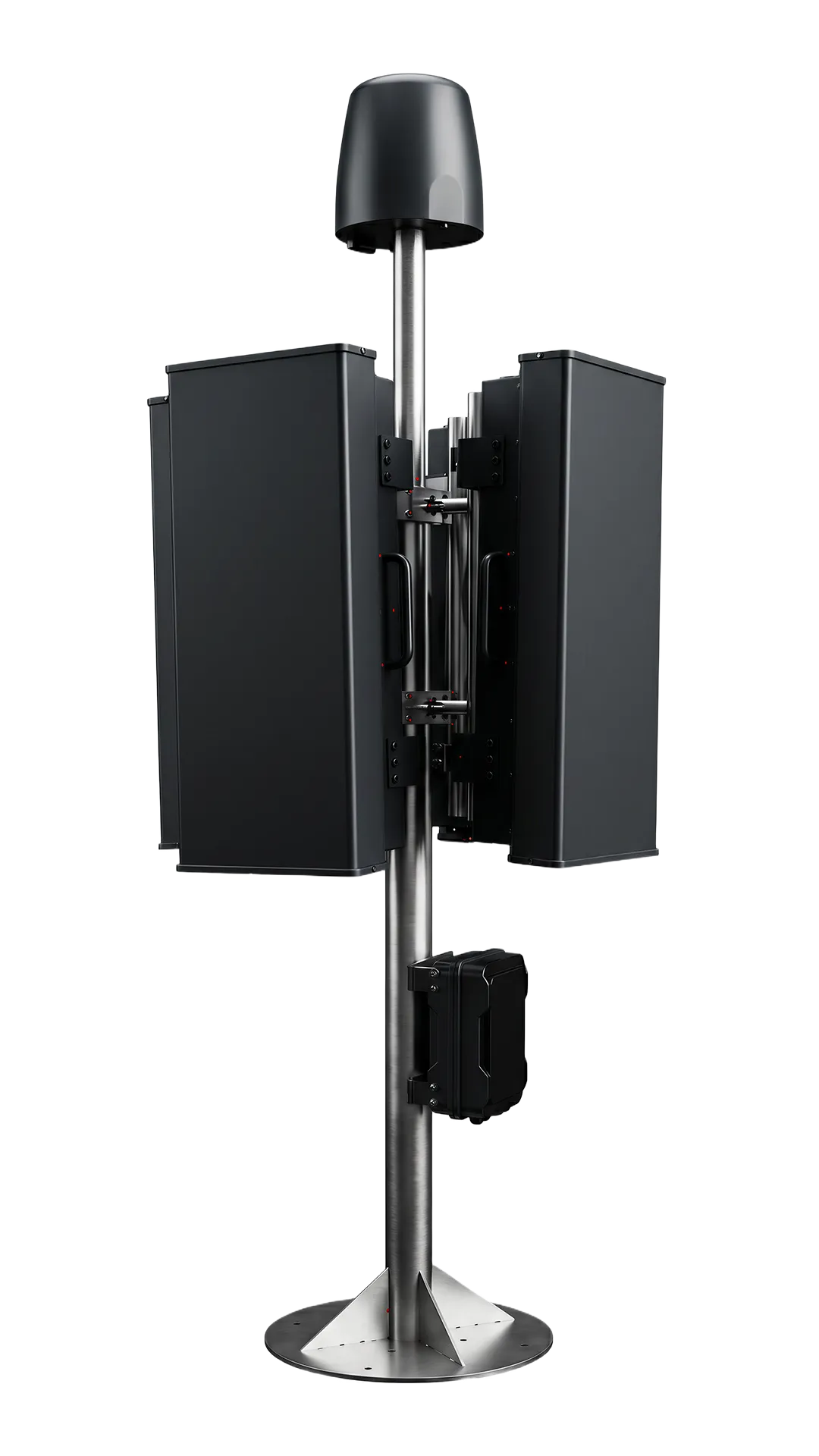

The X1-F412 is a fixed-position system integrating drone detection and jamming, composed of the T1C drone detection device linked with a four-sided drone jamming array. It features full-band detection within a radius of 1–2 km, capable of accurately identifying drone signals within the detection range. The linked four-sided jamming array enables omnidirectional jamming within a radius of 1–4 km, covering 300MHz–6200MHz. It can operate in manual or automatic modes to jam and neutralize drone signals within the detection range.

Detection Range: 3–5 km

Jamming Range: 3-5 km

Detection Response Time: ≤ 3 s

  • Category:
    Integrated Systems
    Share:
    Full-Band Detection

    full-band detection (300MHz–6200MHz) range up to 5km

    High-gain directional antenna design

    high-gain directional antennas, effectively enhancing signal transmission strength and providing the hardware foundation for comprehensive four-sided coverage jamming.
    Extended jamming range up to 5 km

    Full-Band Coverage Jamming

    Provides comprehensive Jamming coverage for frequency bands commonly used by mainstream commercial models and FPV drones

    Comprehensive, high-efficiency Jamming coverage

    Composed of a four-sided jamming array forming a comprehensive jamming unit. Through multi-sided coordination, it ensures deadlock-free electromagnetic coverage within a radius of 1–4 km airspace, even in complex electromagnetic environments and terrain conditions.

    Integrated Detection & Jamming

    300 MHz–6200 MHz

    Detection Range

    3–5 km

    Detection Sensitivity

    > -96 dBm

    Detection Response Time

    ≤ 3 s

    Jamming Range

    3–5 km

    Jamming Frequency Bands

    12 configurable bands

    Total Output Power

    1200 W Max

    Protection Rating

    IP65 (Rainproof)
