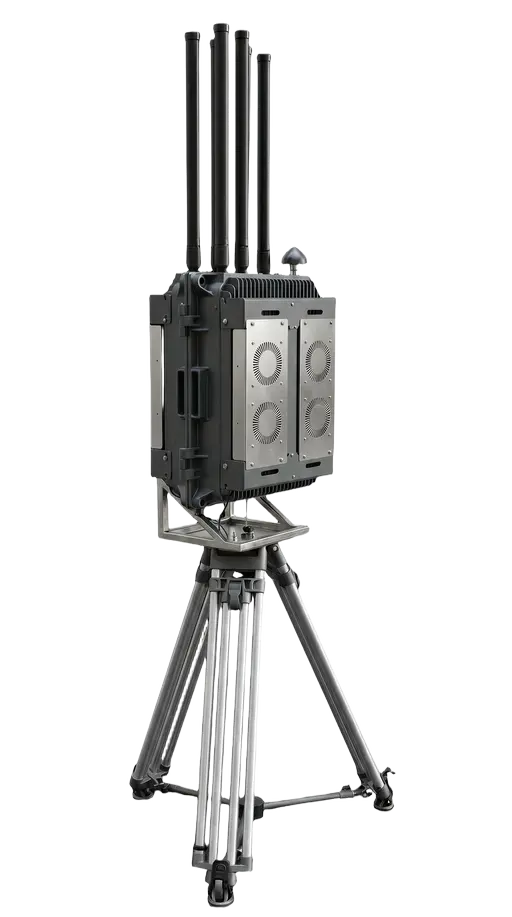

J-F2FB

Adaptive Precision RF Jamming System
  • Detection
  • Jamming
  • Spoofing
  • Electro-optical
  • Radar
  • RF-Spectrum
The full-band jamming system is designed to counter drone intrusions across both standard and non-standard frequency bands. It delivers powerful suppression jamming performance in complex electromagnetic environments. Based on advanced Software-Defined Radio (SDR) signal generation technology, the system effectively disrupts UAV communication links. It is easy to operate and maintain, making it suitable for long-term deployment in critical areas. The design complies with relevant regulations and provides reliable drone control within authorized use.

Effective Range：3 km

Jamming Frequency range: 300 MHz–6000 MHz

Response time: ≤3 seconds

  • Category:
    Jamming
    Share:
    SDR-Based Jamming

    Software-defined architecture enables flexible and intelligent jamming strategies

    Full-band Jamming (300 MHz – 6 GHz)

    Covers all mainstream and non-standard UAV communication frequencies

    Continuous Spectrum Suppression

    Seamless jamming across wide and unknown frequency bands

    High-Efficiency, Low-Power Design

    Optimized power usage for extended operation with strong suppression performance

    Effective range

    3 km

    Jamming Frequency range

    300 MHz–6000 MHz

     Response time

    ≤3 seconds

    Suppressed channels and bandwidth

    4 × 200 MHz + 3 × 50 MHz

    Frequency Adjustment Accuracy

    1 kHz.

    Power Adjustment Step

    0.5 dB

    Maximum Output Power per Channel

    47 dBm / 50 W

    Suppressed Signal Types

    Wideband comb spectra, digital modulation, frequency-sweeping interference, white noise, etc

    Power Supply Voltage

    110–260 V AC

    Maximum Power Consumption

    ≤1300 W

    Operating Temperature

    -40°C to +70°C

    Protection Rating

    IP65
