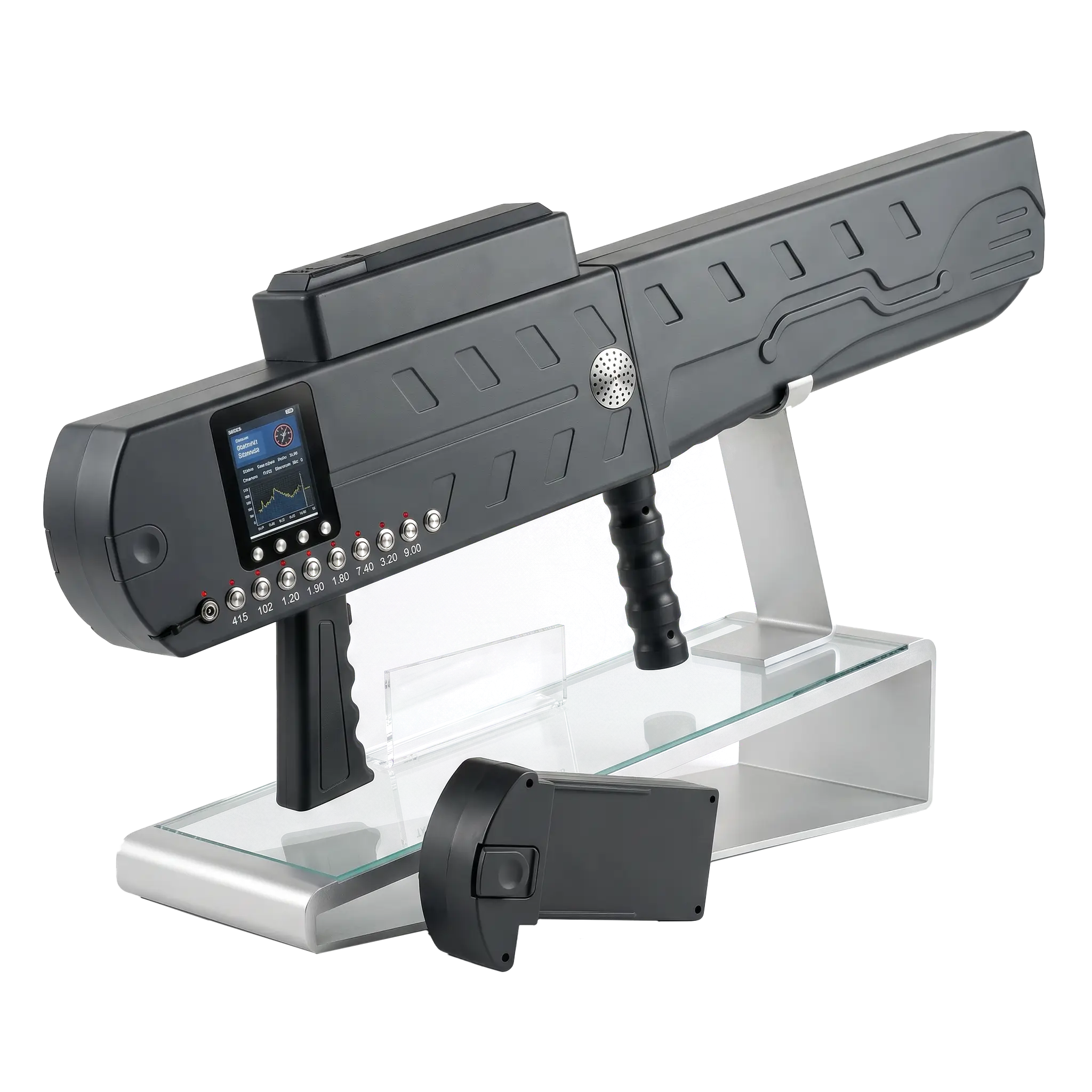

X1-H108

Integrated detection and jamming gun
  • Detection
  • Jamming
  • Spoofing
  • Electro-optical
  • Radar
  • RF-Spectrum
The handheld UAV detection and strike integrated equipment, as a portable UAV detection and strike integrated platform, integrates UAV detection, model identification, rough direction finding, and directional strike. Its principle is based on spectrum sensing and artificial intelligence technology to identify and classify the flight control link and image transmission link of UAV, and can conduct rough direction finding and accurate position acquisition for UAV, and can attack the intruder UAV based on radio interference technology to better guard low altitude safety.

Detection Range: 500–3000 m

Identification Response Time: ≤6 s

Simultaneous Target Detection: ≥10 targets

  • Category:
    Integrated Systems
    Share:
    Integrated Detection & Jamming

    Combines UAV detection, model identification, rough direction finding, and directional jamming in one handheld platform

    Passive Drone Detection

    Detects UAV signals without emitting electromagnetic signals during detection mode

    Targeted Directional Mitigation

    Supports directional RF jamming for precise countermeasure against intruding drones

    Drone Model Identification

    Identifies mainstream drone types, FPV drones, and other supported UAV models

    Replaceable Battery Design

    Detachable battery supports quick replacement for extended field operation

    Built-in Display Interface

    High-resolution screen supports data display and interactive operation

    Detection Frequency Bands

    900 MHz / 1.4 GHz / 2.4 GHz / 5.2 GHz / 5.8 GHz

    Detection Range

    500–3000 m

    Simultaneous Target Detection

    ≥10 targets

    Azimuth Error

    ≤30° RMS

    Detection Success Rate

    ≥95%

    Identification Response Time

    ≤6 s

    Jamming Range

    1500–2000 m

    Jamming Frequency Bands

    428–438 MHz / 840–930 MHz / 1170–1280 MHz / 1450–1530 MHz / 1560–1620 MHz / 2400–2485 MHz / 5150–5250 MHz / 5725–5850 MHz

    Output Power by Channel

    41–46 dBm

    Total Output Power

    200 W

    Power Supply

    Internal 24V, 10A battery / external battery

    Power Consumption

    ≤25 W detect only; ≤380 W jamming and detection

    Charging Time

    ≤3 h

    Battery Endurance

    ≥8 h detect only; ≥30 min jamming and detection

    Operating Temperature

    -20°C to +65°C
