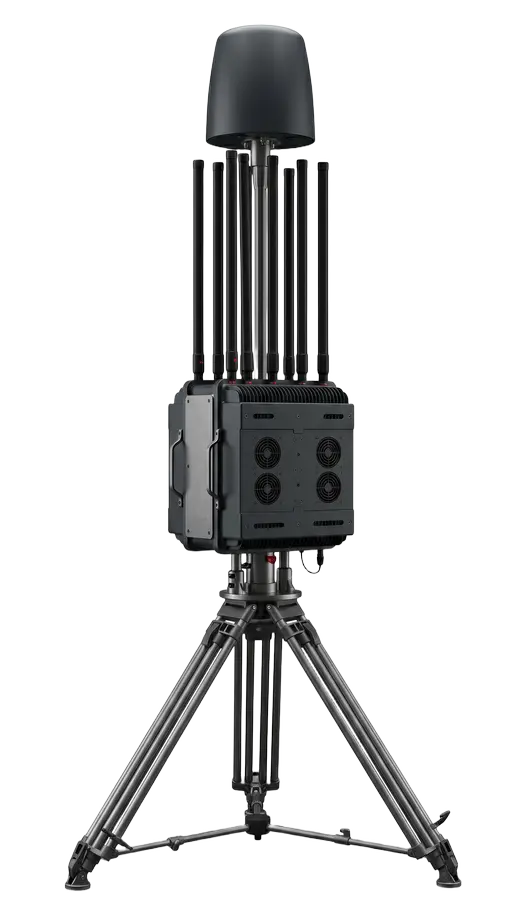

X1-F209

Full-band detection and jamming system
  • Detection
  • Jamming
  • Spoofing
  • Electro-optical
  • Radar
  • RF-Spectrum
The UAV detection and jamming system integrates detection and jamming capabilities into a single platform. The system can work in conjunction with other devices, such as GNSS spoofers, to form a comprehensive anti-UAV solution. It can be configured for fixed installation on buildings or as a vehicle-mounted unit, offering high flexibility, strong integration, and ease of deployment.

Detection Range: 3–5 km

Jamming Range:1.5–3 km

  • Category:
    Integrated Systems
    Share:
    Integrated Detection & Jamming

    Detection range up to 5 km , Jamming range up to 3 km

    UAV & Remote identification

    The threat database supports the detection and identification of drones and micro-drones, as well as their remote controllers.

    Ability to work continuously

    AC power enables 24/7 operation , Complies with MIL-STD-810 standard

    Cost-effective all-in-one solution

    Full capability in a single unit — less equipment, lower cost, faster response

    Detection Frequency Range

    300 MHz–6200 MHz

    Detection Range

    3–5 km

    Detection Sensitivity

    > -96 dBm

    Detected Drone Types

    DJI or OFDM-modulated drones; FPV or FM-modulated drones

    Jamming Frequency Bands

    433 MHz / 700–860 MHz / 860–930 MHz / 1170–1280 MHz / 1430–1520 MHz / 1550–1620 MHz / 2400–2500 MHz / 5150–5250 MHz / 5725–5850 MHz

    Jamming Range

    1.5–3 km

    Interference Source

    Noise technology

    Output Power

    600 W

    Alarm Methods

    Headset / audible / visual alarms

    Log Capacity

    500 alarm entries

    Continuous Operation

    AC-powered 24/7 operation

    Protection Rating

    IP65 (Rainproof)

    Environmental Standard

    MIL-STD-810
