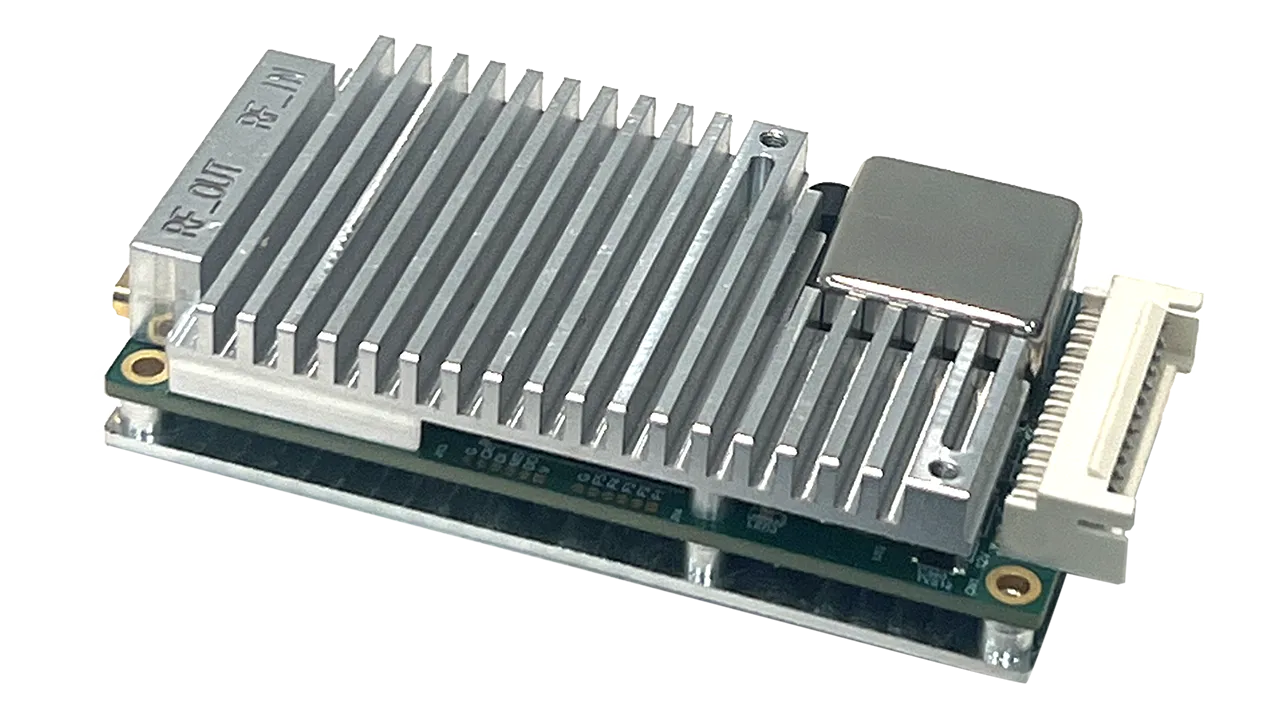

M-S1

Compact GNSS Signal Generation Module Model
  • Detection
  • Jamming
  • Spoofing
  • Electro-optical
  • Radar
  • RF-Spectrum
The M-S1 is a compact GNSS signal generation module designed for drone countermeasure applications. Based on satellite signal simulation technology, it generates synthetic navigation signals across GPS, BDS, GLONASS, and Galileo bands to deceive drone positioning receivers — enabling forced landing, directional diversion, heading guidance, and no-fly enforcement. Highly integrated, low-power, and weighing just 70g, it is purpose-built for integration into handheld and miniaturized counter-UAS platforms.
Category:
Modules

Spoofing Activation Time: ≤10 s

Supported Frequency Bands: GPS L1 C/A / BDS B1I / GLONASS L1 / Galileo E1

  • Share:
    Compact GNSS Spoofing Module

    Designed for integration into handheld and miniaturized counter-UAS platforms

    4-System GNSS Signal Generation

    Supports GPS, BDS, GLONASS, and Galileo signal simulation

    Multiple Spoofing Modes

    Supports crash mode, navigation jamming mode, forced landing mode, and heading induction

    Fast Spoofing Activation

    Boots quickly and reaches optimal spoofing state within a short startup window

    Precision Heading Guidance

    Supports external direction-finding module input for guided spoofing control

    Ephemeris-Based Operation

    Supports ephemeris calculation for operation without live satellite reception

    RF Channels

    1 channel

    Navigation Frequency Points

    4 points

    Supported GNSS Systems

    GPS / BDS / GLONASS / Galileo

    Supported Frequency Bands

    GPS L1 C/A / BDS B1I / GLONASS L1 / Galileo E1

    Spoofing Activation Time

    ≤10 s

    Cold Start Ready Time

    ≤60 s

    Maximum Working Distance

    2 km

    Time Synchronization Accuracy

    ≤30 ns

    Input Voltage

    DC 9–15V

    Power Consumption

    ≤10 W

    Operating Temperature

    -40°C to +70°C

    Storage Temperature

    -45°C to +85°C
