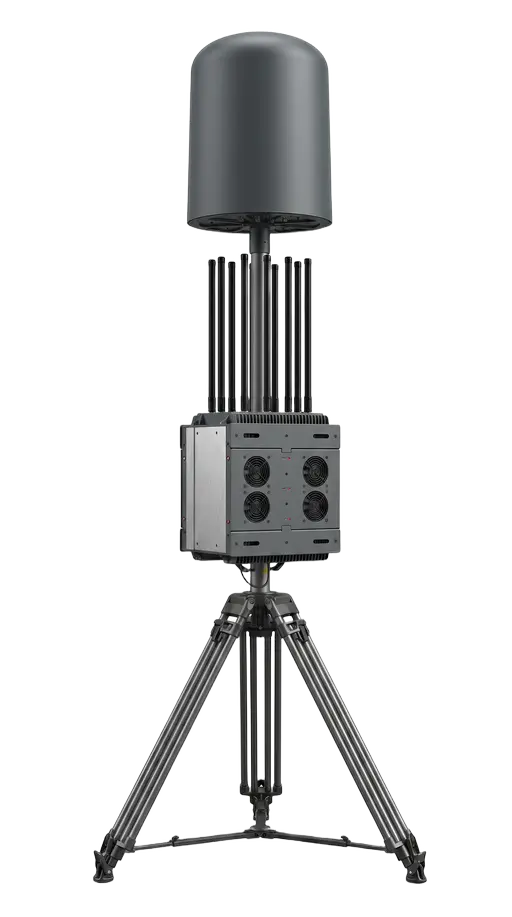

X1-F309

Full-band detection and jamming system
  • Detection
  • Jamming
  • Spoofing
  • Electro-optical
  • Radar
  • RF-Spectrum
The system integrates full-band detection and 9-band jamming capabilities into a single platform. It can also work in conjunction with other devices such as GNSS deception devices.

Detection Range: 10 km

Jamming Distance: 3 km

  • Category:
    Integrated Systems
    Share:
    SDR technology

    Adaptive SDR detection from 300MHz to 6 GHz

    Full-band Detection

    Continuous full-band spectrum detection

    Multi-band interference

    Supports nine customized 50W frequency bands.

    Multi-device linkage

    One detection device can be linked with multiple jammers.

    Detection Frequency Range

    300 MHz–6 GHz

    Detection Distance

    10 km

    Detection Log Capacity

    At least 500 alarm records

    Supported Drone Types

    Mainstream commercial UAVs, FPV racing drones, and DIY UAVs

    Protocol Analysis

    OcuSync 2 / OcuSync 3

    Jamming Frequency Range

    400–500 MHz / 700–860 MHz / 860–930 MHz / 1170–1280 MHz / 1430–1520 MHz / 1550–1620 MHz / 2400–2500 MHz / 5150–5250 MHz / 5725–5850 MHz

    Jamming Distance

    3 km

    Supply Voltage

    110–260V AC

    Jamming Power Supply

    1200W

    Operating Temperature

    -20°C to +65°C
