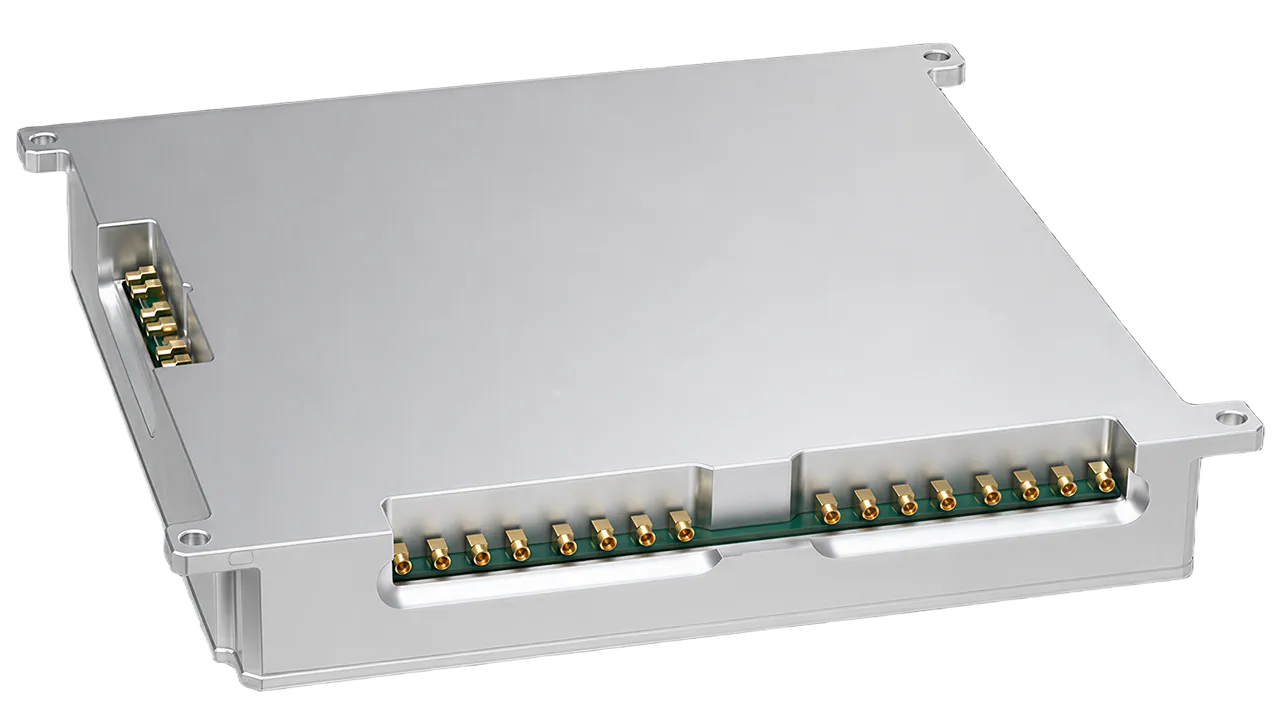

M-X31

SDR-based adaptive jamming&spoofing module

Detection
Jamming
Spoofing

Electro-optical
Radar
RF-Spectrum

The M-X31 is an integrated precision jamming and spoofing platform combining full-band RF suppression with comprehensive GNSS navigation spoofing in a single system. It delivers 4-channel simultaneous jamming across 20MHz–6GHz with 800MHz combined bandwidth, while simultaneously generating synthetic GNSS signals across all major satellite systems — enabling coordinated suppress-and-deceive countermeasures against drone incursions. Designed for fixed-site deployment at critical infrastructure, military bases, airports, and major events.

Jamming Channels: 4 channels

Spoofing Activation Time: ≤10 s

Supported GNSS Systems: BDS / GPS / GLONASS / Galileo / QZSS / NavIC

Category:

Modules

Share:

Detection & Alert (Optional)

Combines precision RF jamming and full-constellation GNSS spoofing in one module

SDR-Based Adaptive Jamming

Supports flexible signal generation for broadband RF suppression

Multi-Channel Jamming

Enables simultaneous RF suppression across multiple channels

Full-Constellation GNSS Spoofing

Supports GNSS signal simulation across major satellite navigation systems

Coordinate Simulation

Supports static or dynamic coordinate simulation to guide spoofed UAV behavior

System Integration Support

Provides standard interfaces and protocols for secondary development and system integration

Jamming Frequency Range

20 MHz–6 GHz

Jamming Channels

4 channels

Maximum Combined Bandwidth

800 MHz

Supported GNSS Systems

BDS / GPS / GLONASS / Galileo / QZSS / NavIC

Time Synchronization Accuracy

<50 ns

Spoofing Activation Time

≤10 s

Input Voltage

DC 12V

Operating Power

≥50 W

Operating Temperature

-40°C to +70°C

Storage Temperature

-45°C to +85°C

Compliance Standard

GJB1621.7A-2006
