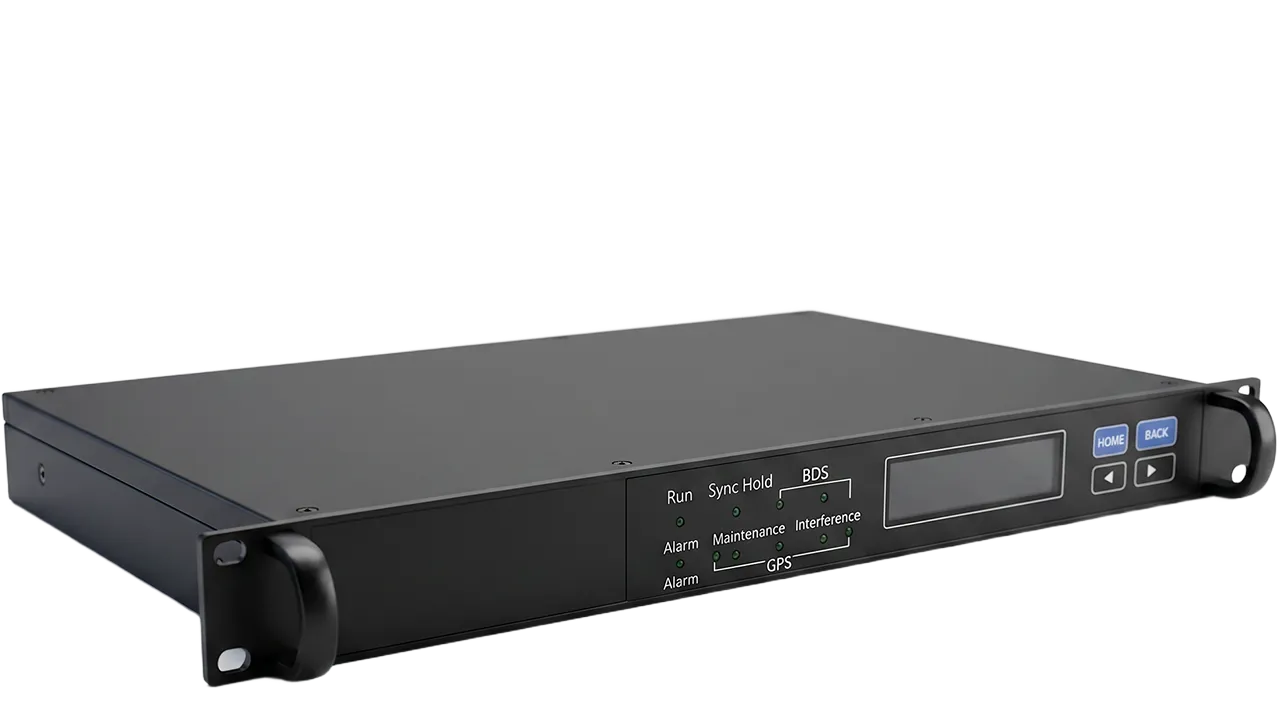

SG-1

GNSS Timing Protection Unit
  • Detection
  • Jamming
  • Spoofing
  • Electro-optical
  • Radar
  • RF-Spectrum
The SG-1 is a defensive timing protection device designed to safeguard GPS/BDS-based timing systems in power grids, telecom networks, and data centers against spoofing and jamming attacks. Installed inline between existing timing receivers and antennas — requiring no replacement of existing equipment — it monitors GNSS signal integrity in real time, automatically isolates anomalous signals, and maintains uninterrupted timing output even under full-spectrum denial conditions. Maintains ≥1 hour of accurate timing (≤500ns) after complete satellite signal loss.

Alarm Detection Time: ≤15 s

Alarm Clear Time: ≤120 s

Supported GNSS: GPS L1 / BDS B1I / BDS B3I

  • Category:
    Modules
    Share:
    Real-Time Signal Integrity Monitoring

    Monitors GNSS signal integrity and isolates abnormal signals automatically

    Holdover Timing Output

    Maintains timing output after complete satellite signal loss

    Drop-In Installation

    Installs inline between existing timing receivers and antennas without replacing current equipment

    Automatic Mode Switching

    Switches between synchronized mode and denial-holdover mode automatically

    Network Alarm Monitoring

    Supports continuous alarm logging and network monitoring output

    Supported GNSS

    GPS L1 / BDS B1I / BDS B3I

    Alarm Detection Time

    ≤15 s

    Alarm Clear Time

    ≤120 s

    Output Sync Accuracy

    <50 ns, normal mode

    Holdover Accuracy

    ≤500 ns

    Holdover Duration

    L1 ≥1 h / L2 ≥2 h / L3 ≥6 h / L4 ≥24 h

    Isolation Capability

    Spoofing signals / full-band suppression jamming

    Input Voltage

    DC 48–264 V / AC 88–264 V

    Power Consumptio

    ≤20 W

    Operating Temperature

    -20°C to +60°C

    Storage Environment

    5%–95%
