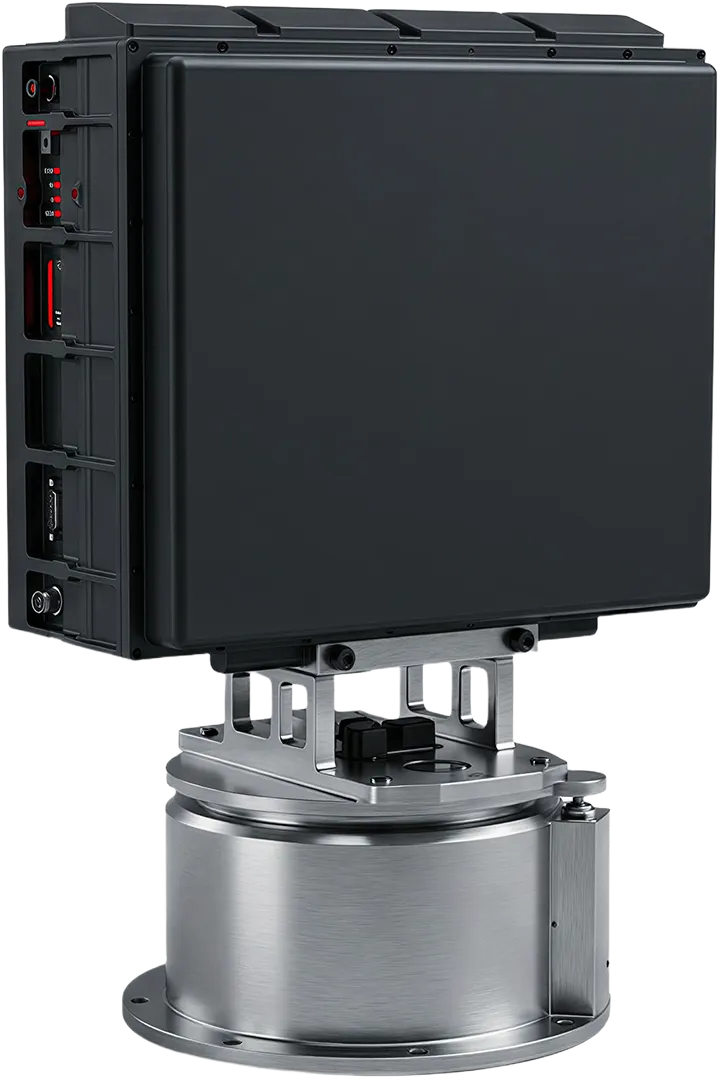

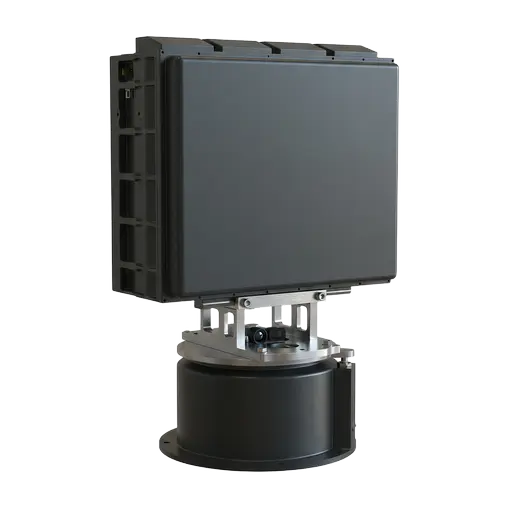

DA-F1

Compact Drone Detection Radar (X-Band)
  • Detection
  • Jamming
  • Spoofing
  • Electro-optical
  • Radar
  • RF-Spectrum
The DA-F1 X-band medium-range phased array radar features a fully solid-state, fully coherent, pulse-Doppler architecture, delivering all-weather effective detection and early warning capabilities against Low, Small, and Slow (LSS) targets. Incorporating machine learning and AI-driven identification technologies based on micro-Doppler signatures and track characteristics, the system ensures the reliable detection, classification, and identification of LSS targets—including UAVs, light aircraft, helicopters, powered hang gliders, airships, and free-floating balloons—while maintaining an extremely low false alarm rate.

Detection Range: ≥ 5 km (RCS: 0.01m², UAV)

Frequency Band: X-Band

  • Category:
    Detection
    Share:
    Adaptive Machine Learning

    Zero manual tuning, plug-and-play auto-adaptation to deployment environment.

    Robust Detection

    Low false alarm rate, stable detection of highly maneuverable UAVs.

    All-Weather Operation

    Cloud and rain clutter suppression for reliable 24/7 functionality.

    Flexible Scanning Modes

    360° airspace surveillance & key area detection with seamless mode switching.

    Advanced Tracking

    Mechanical scan tracking and phased-array TAS (Track and Search) capabilities.

    AI-Powered Classification

    Classifies UAVs, birds, personnel, vehicles via micro-Doppler & track characteristics.

    Automated Calibration

    Built-in self-positioning, auto-leveling, and north alignment.

    Configurable Scan Coverage

    User-defined instrumented range and elevation scan limits.

    Radar Band

    X-Band

    Blind Zone

    ≤ 150 m

    Detection Range

    ≥ 5 km (RCS: 0.01m², UAV)

    Target Capacity

    ≥500

    TAS Track Capacity

    ≥ 6 targets

    Min. Detection Altitude

    ≤ 10 m

    Target Velocity Range

    1 m/s ~ 100 m/s

    Tracking Capability

    Mechanical scan tracking / Phased scan TAS (Track and Search)

    Jamming Activation Time

    ≤1 second

    Interface

    RJ45 Ethernet port

    Power Supply

    220V AC / 24V DC

    IP Rating

    IP66

    Power Consumption

    ≤ 350 W

    Dimensions

    575mm × 317mm × 220mm

    Operating Temperature

    -40°C to +70°C
