DE-F1

Electro-Optical Tracking System
  • Detection
  • Jamming
  • Spoofing
  • Electro-optical
  • Radar
  • RF-Spectrum

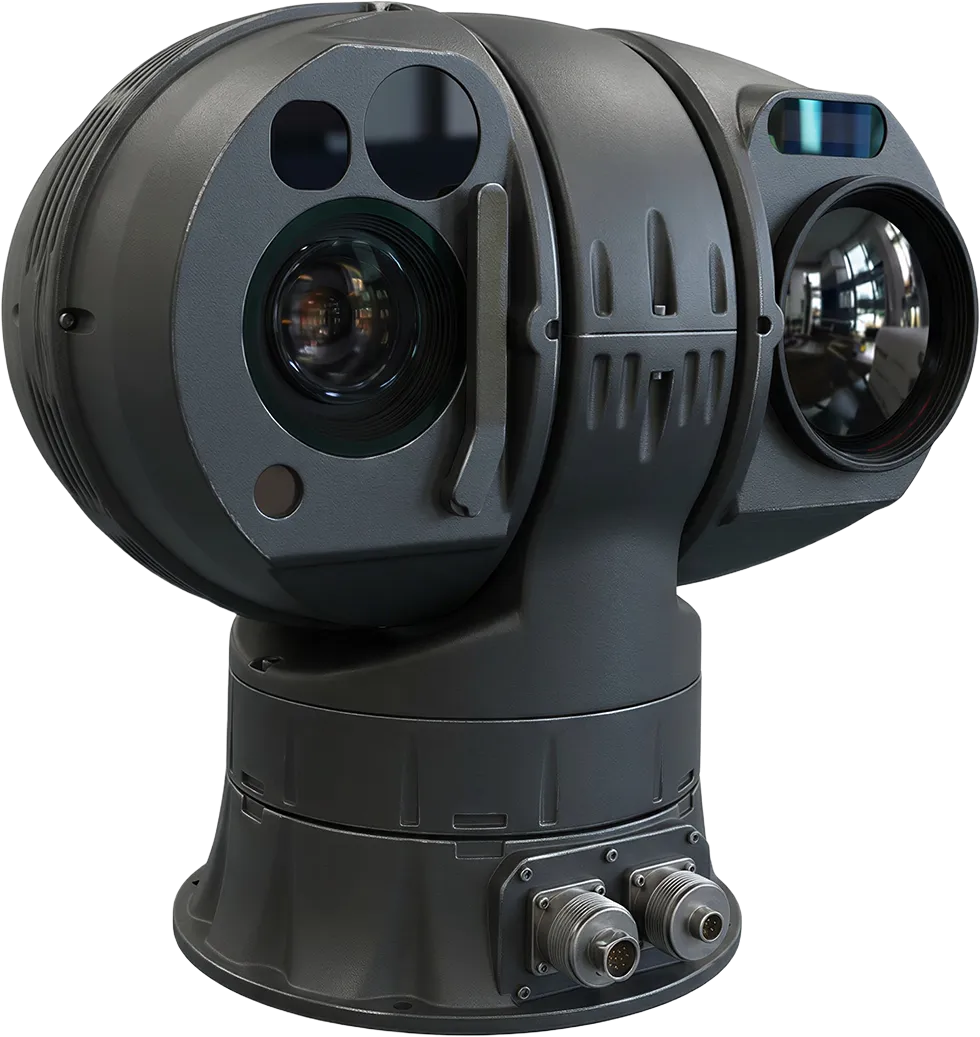

The DE-F1 miniature electro-optical turrets utilize multi-spectral detection modules, including high-definition visible-light cameras and uncooled thermal imagers, with an optional laser rangefinder module. When combined with intelligent target detection and tracking modules, they can effectively detect, track, identify, and provide early warnings for small and medium-sized consumer-grade rotary-wing and fixed-wing drones, as well as personnel, vehicles, and vessels.
The micro-optical turret can be used independently or integrated with radar systems, passive spectrum detection equipment, and radio jamming devices to form an automated UAV defense system, providing effective day-and-night, all-weather air-ground integrated security for critical sites.
Category:
Detection
Share:
Day & Night Multispectral Detection (EO + Thermal)

Combines visible and thermal imaging for 24/7 all-weather surveillance.

48× Optical Zoom with Autofocus

Captures distant targets with clear detail and precise focus.

High-Speed PTZ with Full Coverage

360° azimuth / ±90° elevation, fast rotation up to 100°/s for dynamic targets.

Intelligent Auto Tracking & Recognition

Stable tracking of fast-moving targets with smart detection and classification.

Sensor

Back-illuminated starlight-level CMOS.

Resolution

1920×1080.

Lens

7–320 mm HD lens.

Lens Control

Motorized zoom, manual/semi-automatic/automatic focus.

Video Format

H.264/H.265.

Fog Penetration

optical/electronic dual fog penetration.

Wipers

Supports intelligent automatic wipers.

Rotation Range

Continuous 360° horizontal rotation; -90° to +90° tilt.

Rotation Speed

Horizontal 0.01°/s to 100°/s; Vertical: 0.01°/s to 80°/s.

Positioning Time

≤2 s.

Preset Positions

No fewer than 2048.

Tracking Modes

Manual and automatic tracking; supports radar integration.

Rotation Speed

Horizontal 0.01°/s to 100°/s; Vertical: 0.01°/s to 80°/s.

Tracking Accuracy

≤0.5 m rad.

Video Switching

Digital HD visible light/digital infrared video switching during tracking.

Tracking Algorithms

Built-in multiple tracking algorithms, supporting multi-target detection, automatic capture, occlusion-resistant tracking, and recognition-based tracking.

Image Enhancement

AI ISP image enhancement, supporting wide dynamic range, backlight suppression, electronic image stabilization, 3D digital noise reduction, automatic white balance, etc.

Operating Temperature

-20℃ to 60℃

Optional Interfaces

Supports Audio In/Out, Alarm In/Out, BNC, RS485

Power supply

AC220V±20%，50Hz

Weight

≤12kg

Dimensions

314mm×312mm×200mm

Input Voltage

AC 220V / 50Hz

Product Power Consumption

≤ 220W
