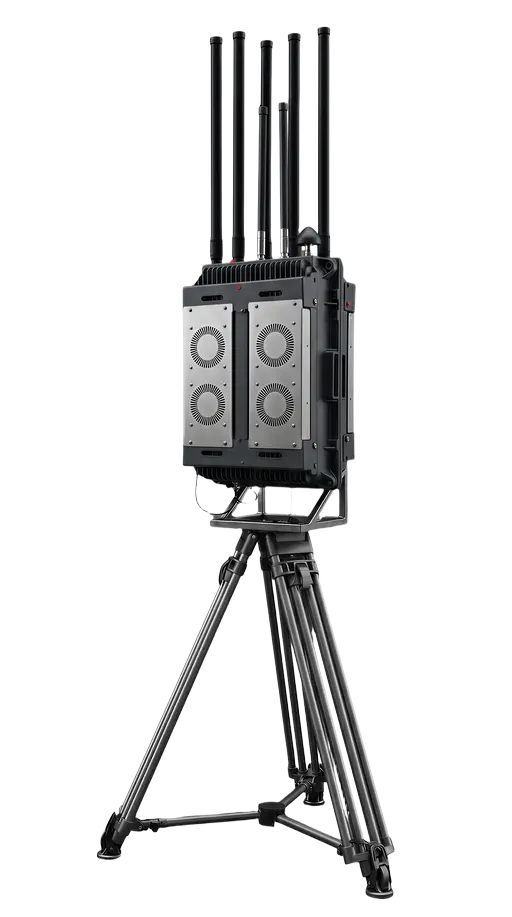

X3-F2FB

Adaptive Jamming & GNSS Spoofing System
  • Detection
  • Jamming
  • Spoofing
  • Electro-optical
  • Radar
  • RF-Spectrum
An integrated counter-UAS system employs Software-Defined Radio (SDR) signal generation and navigation spoofing technologies to achieve long-range UAV interception and control. With strong jamming and spoofing capabilities, the device can effectively respond to UAV threats in complex electromagnetic environments. It features simple operation, easy maintenance, and is suitable for long-term deployment in critical areas, providing reliable UAV countermeasure capability within authorized operational conditions.

Jamming Range: 3 km

Spoofing Range: 3 km

  • Category:
    Integrated Systems
    Share:
    SDR-Based Jamming & Spoofing Integration

    Combines RF suppression and GNSS spoofing in one system for layered counter-UAS capability

    Full-Band Jamming

    Supports simultaneous multi-channel suppression across the 300 MHz–6 GHz band.

    Multi-Protocol UAV Suppression

    Offers standardized interfaces and protocols for secondary development and integration.

    Multi-GNSS Signal Generation

    Supports simulation of global navigation signals including BDS, GPS, GLONASS, Galileo, QZSS, and NavIC.

    Navigation Spoofing and Guidance

    Spoofs and guides GNSS-dependent UAVs to achieve expulsion, heading control, circular flight, forced landing, takeoff denial, or crash.

    Precision Spoofing

    Enables targeted UAV spoofing when integrated with detection systems.

    Open Interfaces & System Integration

    Provides standard protocols and interfaces for seamless integration and secondary development

    Jamming Range

    3 km

    Spoofing Range

    3 km

    Spoofing Response Time

    Lost GPS <1s; flight path modification ≤10s

    Jamming Frequency Range

    300 MHz–6000 MHz

    Jamming Bandwidth

    4 × 200 MHz + 3 × 50 MHz

    Jamming Frequency Accuracy

    1 kHz

    Jamming Power Adjustment Step

    1 dB

    Maximum Jamming Power per Channel

    47 dBm / 50 W

    Suppressed Signal Types

    Wideband comb spectra, digital modulation, frequency-sweeping interference, white noise, etc

    GNSS Spoofing Frequency Points

    Up to 12 configurable navigation frequency points

    Supported GNSS Systems

    BDS / GPS / GLONASS / Galileo / QZSS / NavIC

    Spoofing Power Adjustment Range

    80 dB

    Spoofing Power Adjustment Resolution

    0.5 dB

    Time Synchronization Accuracy

    <30 ns

    Power Supply Voltage

    110–260 V AC

    Maximum Power Consumption

    ≤1300 W

    Operating Temperature

    -40°C to +70°C

    Protection Level

    IP65
