J-P1

Shield-Type Directional Jamming System
  • Detection
  • Jamming
  • Spoofing
  • Electro-optical
  • Radar
  • RF-Spectrum

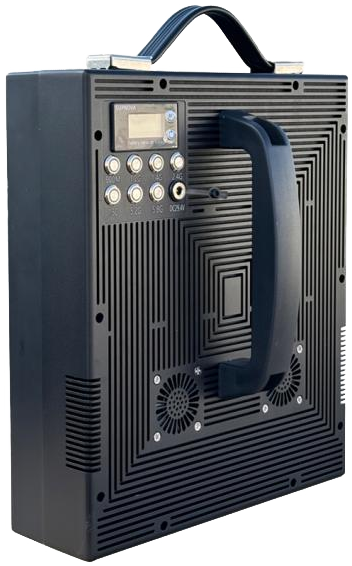

The shield-style drone jammer is a directional countermeasure device that utilizes narrowband jamming and RF (Radio Frequency) suppression technology to sever the communication link between a drone and its remote controller, thereby forcing the drone to return to its home point. Once the drone is neutralized, its video transmission channel is also cut off, disabling its ability to transmit video or aerial photos and preventing it from receiving any commands from the ground pilot. This ensures the effective protection of critical areas.

Effective Range: 1-2km

Frequency band: 900M/1.2G/1.4G/1.5G/2.4G/5.2G/5.8G

Battery life: 2 hours working

Weight: 6.2kg

  • Category:
    Jamming
    Share:
    Jamming Technology

    Utilizes ultra-high frequency broadband seamless jamming technology.

    Control Method

    Independent switch control for each channel’s power output.

    Performance Advantage

    High channel power ensures a long effective jamming distance.

    Precision Jamming

    Effectively segments frequencies to interfere only with drone control and video transmission, avoiding other signals.

    Battery Design

     Features a removable, plug-in internal battery with a life of over 30 minutes.

    Circuitry & Stability

     Uses imported components and a soft-start circuit for high integration and stable operation.

    Jamming Distance

    DJI Mavic 2 > 1 km;DJI Mavic 3 > 0.5 km

    Time to Effect

    ≤ 1s

    Operating Temperature

    -10℃～+55℃

    Storage Temperature

    +15℃～+25℃
