J-F2

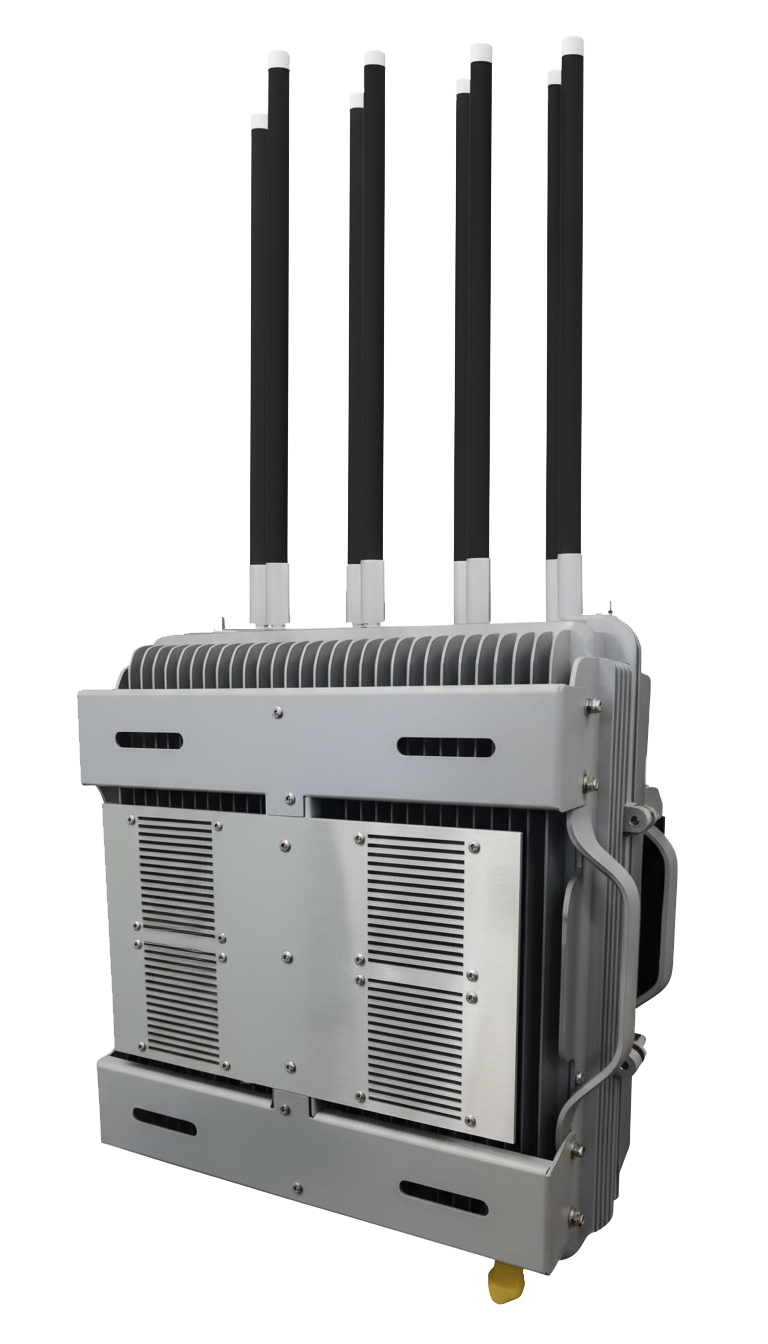

Base Station Omnidirectional Drone Jammer

Detection
Jamming
Spoofing

Electro-optical
Radar
RF-Spectrum

A fixed omnidirectional drone jamming system is used to defend against intruding drones, employing radio countermeasure technology to achieve effective management and control of the intruding unmanned aerial vehicles (UAVs).The system can provide low-altitude, comprehensive protection within a defense radius of 2,000 meters.It is effective against drones through signal jamming, forcing them to land, or compelling a return-to-home. This allows for 24/7 unattended defense. (Frequency bands and power are customizable).

Frequency Band: 300MHz-6GHz

Effective Range: 2km

Defense angle： 360°

Response time: 3s

Category:

Jamming

Share:

Flight Control

Forces drones to return-to-home or land using suppression jamming technology.

Precision Jamming

Selectively jams only drone control, positioning, and video transmission frequencies without affecting other bands.

Power & Range

Higher effective power results in a longer countermeasure distance.

Simple Operation

Ready to use on power-up with a one-key switch for signal transmission.

Antenna Compatibility

Comes standard with an omnidirectional antenna for multi-band, long-range coverage, and supports directional antenna connection.

Independent Channel Control

Allows for individual on/off control of each signal output channel.

System Integration

Supports communication protocols for integration into security management systems for unattended operation.

Safe & Stable

Features a slow-start circuit design to prevent sparking, ensuring high integration and stable performance.

Rugged & Durable

A cast aluminum housing with a cooling fan makes it durable and suitable for harsh environments.

Easy Installation

Compact design with mounting brackets supports wall or pole installation.

Input Voltage

AC 220V

Power Consumption

≤1000W

Operating Temperature

-45℃ to +55℃

Storage Temperature

-50℃ to +80℃

Protection Level

IP65
