J-B1

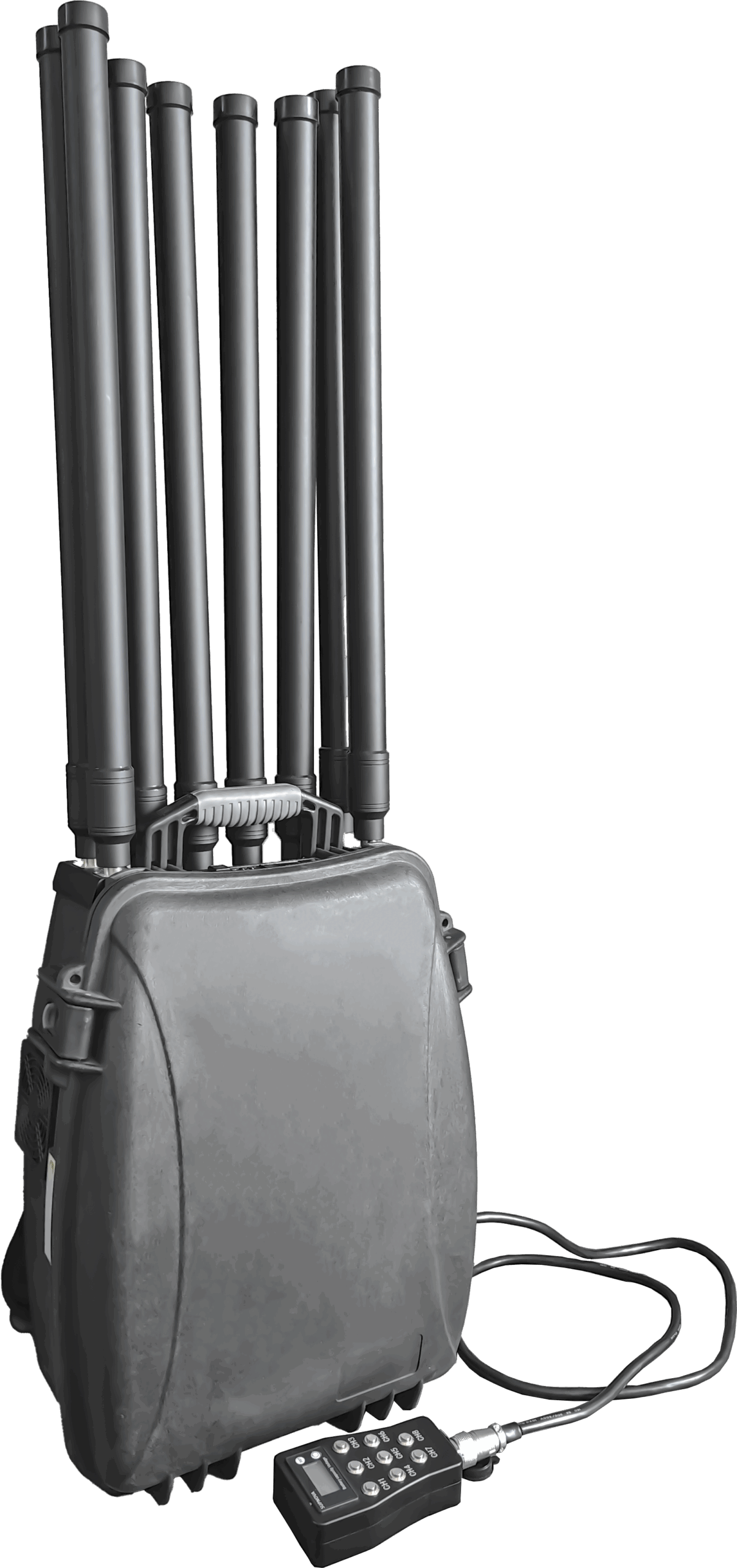

Backpack Jamming Device
  • Detection
  • Jamming
  • Spoofing
  • Electro-optical
  • Radar
  • RF-Spectrum
The stationary drone spectrum detection equipment utilizes passive radio detection and software-defined radio (SDR) technology to provide 360° omnidirectional detection coverage. It comes standard with 2.4GHz, 5.8GHz, 800MHz, and 900MHz frequency bands, with optional support for 433MHz, 1.4GHz, and 5.2GHz bands. The device features standalone positioning, early warning, blacklist/whitelist capabilities, and ID identification, while also supporting intelligent functions such as viewing detection results, spectrum analysis, and data capture.

Effective Range：1~3Km (typical target: DJI Inspire 3)

Frequency Range: 300MHz-6GHz 8 channels

Weight: 25kg

Ingress Protection: IP65

  • Category:
    Jamming
    Share:
    Design

    Backpack style for easy portability.

    Battery

    Integrated design with a built-in battery.

    Control Method

    Independent switch control for each channel.

    Antenna Modes

    Supports both external omnidirectional and handheld directional antennas.

    Antenna Performance

    Optimized antenna for enhanced countermeasure range.

    Power Display

    Equipped with a screen for real-time battery level monitoring.

    Power Expansion

    Supports an optional external battery pack.

    Input Voltage

    AC220V to DC5V (Charging Adapter)

    Power Consumption

    ≤ 400W;a. Battery Life: 5 hours;b. Charging Time: 4 hours

    Operating Temperature

     -10℃ to +55℃

    Storage Temperature

     +15℃ to +25℃
