DR-H1

Handheld Detection Device
  • Detection
  • Jamming
  • Spoofing
  • Electro-optical
  • Radar
  • RF-Spectrum

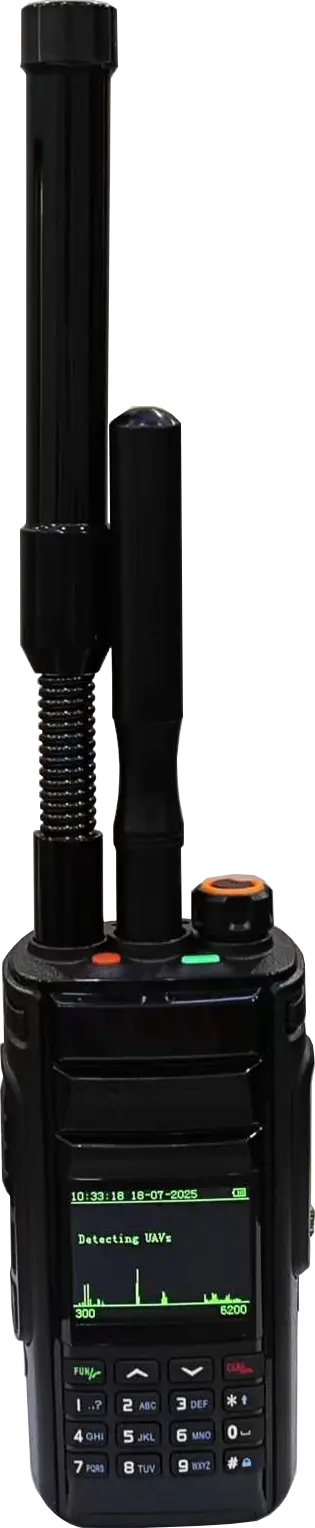

The portable drone detector features a low-power, highly integrated design. It is capable of detecting mainstream rotor-wing drones from brands like DJI and Autel that use OFDM high-definition video transmission, as well as various types of DIY FPV (First-Person View) drones that use analog video transmission signals. The product utilizes a dual-antenna, multi-channel simultaneous scanning system, offering characteristics such as high detection speed, high sensitivity, long detection range, a low false alarm rate, strong expandability, and ease of use.

Detection Range: ≥1000m

Frequency Detection Range: 300MHz-6200MHz

Identification type: OFDM high-definition image transmission signal, FPV FM analog image transmission

  • Category:
    detection
    Share:
    Detection Scope

    Identifies OFDM drones like DJI and Autel, and analog FPV drones within the 300MHz-6200MHz frequency range.

    Alarm Methods

    Supports earphone audio alerts and external sound and light alarms.

    Log Function

    Records alarm logs, which can be exported via a USB interface.

    Earphone Support

    Alarm sounds can be received through earphones.

    Firmware Upgrade

    Firmware can be upgraded via a USB interface.

    Language Support

    Supports switching between Chinese, English, and Russian.

    Operating Modes

    Features three modes: Default, Key Frequency Scan, and Custom Signature Library Scan.

    Custom Detection

    Users can add, delete, or modify the drone detection signature library via a USB interface.

    Power Supply

    Removable lithium battery with Type-C charging

    Battery Life

    ≥6 hours on a single battery

    Dimensions

    ≤135mm x 60mm x 35mm (main unit, excluding antenna)

    Weight

    ≤500g (including a single battery)
