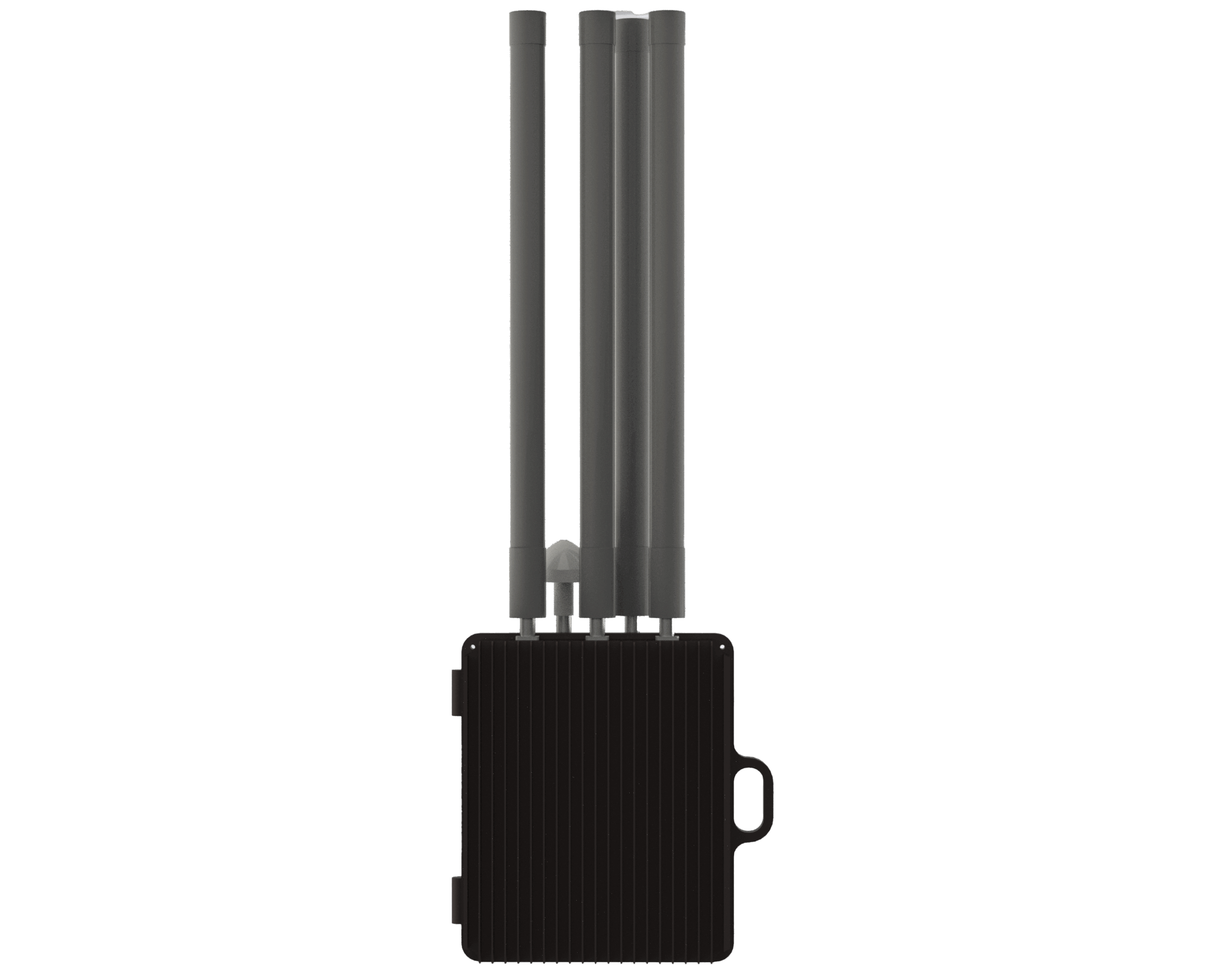

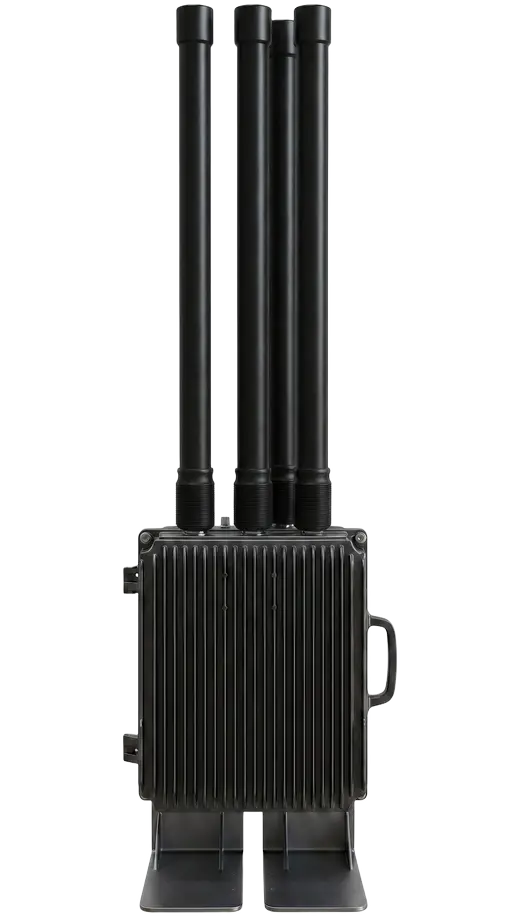

DR-F1

Multi-Spectral Electro-Optical Detection Device
  • Detection
  • Jamming
  • Spoofing
  • Electro-optical
  • Radar
  • RF-Spectrum
This device detects conventional and non-standard drones within the 300MHz-6GHz frequency range. It features drone protocol parsing to capture flight control information, including pilot and drone coordinates and serial numbers. It can also detect and extract drone signal features to update its library.

Frequency Detection Range: 300MHz～6000MHz

Detection Range: 3-5km

Output Power：≤1500W

Ingress Protection: IP65

  • Category:
    detection
    Share:
    Full-band Detection

    Supports spectrum detection from 300MHz to 6GHz.

    Protocol Parsing

     Parses DJI Drone ID and standard Remote ID.

    Blacklist/Whitelist

    Supports detection, alerts, and library management for compliant and non-compliant drones.

    Model Identification

    Detects various drone types, including DJI (OFDM), FPV (FM), and Wi-Fi (802.11) models.

    Frequency Range

    300MHz – 6GHz

    Real-time Sampling Rate

    ≥ 245.76 Msps

    Max. Receiving Bandwidth

    ≥ 200 MHz

    Receiving Channels

    ≥ 4 channels

    Detection Distance

    3 – 5 km

    Detectable Types

    DJI (OFDM), FPV (FM), and Wi-Fi (802.11) drones.

    Elevation Accuracy

    Parses Ocusync 2/3, outputting pilot/drone coordinates, home point, model, and serial number.

    Remote ID Analysis

    Parses standard Remote ID, outputting flight status, speed, position, altitude, etc.

    Jamming Activation Time

    ≤1 second

    Supply Voltage

    110~260V AC

    Rated Power

    ≤ 100W
